AHLI-100

AHLI-100

The Automatic Single Head Leaflet / Outserter Pasting Machine Model AHLI- 60S , is suitable for Round, Rectangular or Square Shape Bottles with maximum speed of 50 Bottles per minute to apply Leaflet on any Side of Bottles. Specially Machine construction in completely Stainless Steel finish including machine frame structure with Stainless Steel Enclosures.

The Automatic Single Head Leaflet / Outserter Pasting Machine Model AHLI- 100 , is suitable to Apply Leaflet on Top side of Round, Rectangular or Square Shape Bottles with maximum speed of 80 Bottles per minute. Specially Machine construction in completely Stainless Steel finish including machine frame structure with Stainless Steel Enclosures.

The Machine is suitable for applying various Sizes and thickness of Leaflet on Bottles with speed up to 80 bottles per minute depending on Bottle Diameter, Bottle Height and Leaflet Size for use on Tablet Bottle Packing Line for Online operation. Machine can Paste / Fix the Leaflet on Top of the Bottles. Machine can be connected with any Bottle Packing Line for using it online. Machine suitable for various sizes of Bottles as well as Leaflet.

Machine does not require change parts for change in bottle size and Leaflet size. Customer may require few items for any special size of leaflet as a change parts.

Special Machine can also be designed to apply leaflet on body of bottles on request from customer. Machine with various optional as well as Standard features, and with unique features of No Glue No Leaflet system. Machine available with Online Hot Melt Gluing System as a optional items, if require we can supply the machine without online gluing system also.

Technical Specifications

• Bottle Diameter : Up to 125mm* and other shape on request
• Bottle Height : Up to 225mm*
• Leaflet Size : Samples required
• Conveyor Height : 815-850 mm
• Overall Dimensions : 2980 mm (L) x 770 mm (W) x 2200mm (H)
• Speed : Max. 80 Bottles per minute depending on Bottle and Leaflet Size Require Filtered Compressed Air and Suitable Hot Melt Adhesive with required Drying time is to be provided by customer only.

* Specification can be changed as per customers requirements

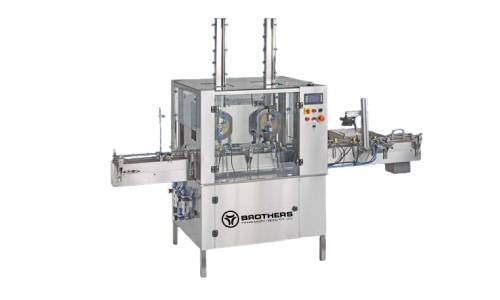

Note:- Photograph shown above is Twin Head Model for reference only.

Optional Features:

• Online Camera System for detection of Missing Barcode/Pharmacode/2D code or Leaflet on Bottle
• Online Bottle Rejection System for Wrong Leaflet or Missing Leaflet
• Stainless steel construction Safety Cabinet with Toughened Glass or Acrylic
• Hot Melt Gluing System for Online Glue Application

Special Features:

- Colour Touch Screen Operation Panel

- No Air - Machine Stop System

- Machine works on Compressed Air - No Vacuum required

- No Bottle - No Leaflet Pasting System

- No Glue - No Leaflet Pasting System

- No Leaflet in feeder - Machine Stop System

- Machine construction in Stainless Steel Finish

- Single Drive synchronizing operation of Conveyor, Bottle Feeding and Leaflet Pasting

- Minimum Change over time

- No Change Parts for Change in Bottle Size and Leaflet Size. Leaflet Sample require to workout any extra change parts if required due to special size of leaflet.

Utility Requirement

- Filtered Compressed Air : 7 Bar Air Pressure

- Electrical : 415 VAC 3 Phase 50Hz and 220 VAC

- Single Phase Power Supply (50/60 Hz) with A.C. Drive

- Power : 2 Hp
