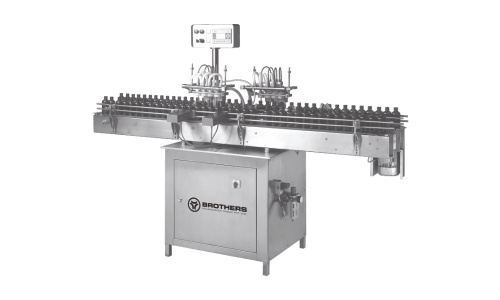

AIRWASH-100
The Automatic Four Head Air
Jet Cleaning Machine Model AIRWASH-
100 comes with speed of Max. 80 bottles per minute.
The AirJet Cleaning Machine applies Compressed Air through Jets and
also sucks through Vacuum. Machine can be used to clean
Glass/Plastic/PET Bottles, Jars etc. Machine is suitable for cleaning of
Bottles used for non-sterile products like Dry Syrups Filling Line, Bulk
Packing of Tablets and Capsule lines.
Machine with built-in Turn Table to feed container in vertical position
through conveyor to cleaning station, where cleaning heads grip the
container through cup holder and starts the Compressed Air and then
Vacuum to clean the bottles.
Machine in Stainless Steel Finish with all contact parts in S.S.316 and
Nylon Material. Machine also having overload clutch system to prevent
jamming during the operation. The manifold comprises of inner nozzles
which jets compressed air in the bottle and on outer socket, which
covers the mouth of the bottle and is connected to Vaccum Line / Suction
Blower, which ensures perfect cleaning.
Technical Specifications :
| Product Diameter | Upto 90 mm* |
| Product Height | 150 mm* |
| Compressed Air Consumption | 80 CFM |
| Vacuum Pump/Line | 300 Ltr. Capacity to be provided by customer |
| Speed | Upto 80 per minute depending on bottle size |
| Conveyor Height | 875 to 950 mm Adjustable |
| Overall Dimensions | 1500 mm (L) x 780 mm (W) x 1300 mm (H) |
| * Specification can be changed as per customers requirements | |
Utility Requirement :
| Filtered Compressed Air | 6 to 7 Bar Air Pressure |
| Vacuum Pump/Line | 300 Ltr. Capacity to be provided by customer |
| Electrical | 415 VAC 3 Phase 50Hz and 220 VAC Single Phase Power Supply (50/60 Hz) |
| Power | 2 Hp |
Special Features :
- No Container - No Air - No Vacuum System
- Four Air Jet Nozzles with Vacuum Mouth Holder for Cleaning
- Fully Stainless Steel Finish
- Simple Change over for different size - Only Mouth Holder required
- Complete operation in Vertical position
- Overload Clutch for Jamming
- Optional A.C. Variable Frequency Drive System.
- Automatic In-feed and Out-feed of containers
- Intermittent Linear Motion of Machine
×
