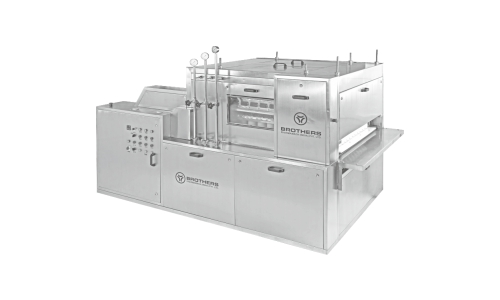

BOTTLEWASH-120 Automatic Linear Bottle Washing Machine
The BOTTLEWASH-120 is an Automatic Linear Bottle Washing Machine designed for efficient washing of round and flat-shaped glass, PET, and plastic bottles ranging from approximately 30 ml to 200 ml. This high-speed Linear Bottle Washing Machine can operate at a maximum speed of 120 bottles per minute, depending on bottle size and application requirements.
The machine is manufactured with a fully stainless-steel construction, including the machine frame. All parts coming in contact with the washing zones and washing jets are made from SS 316 material. The BOTTLEWASH-120 Bottle Washing Machine is suitable for applications in the pharmaceutical, food, distillery, and other industries where consistent and efficient bottle cleaning is required.
This Linear Bottle Washer uses intermittent bottle handling to provide sufficient washing time while helping optimize water consumption. Water spraying starts as the washing nozzle enters the bottle neck, supporting efficient internal bottle washing. The machine features five configurable washing zones, with each zone equipped with 10 nozzles for effective washing. It also includes an external bottle washing system and can be customized according to bottle size, shape, and required washing sequence.
Technical Specifications
| Suitable Bottle Size | 30 ml to 200 ml Bottles* |
| Bottle Dimensions | 32 mm to 60 mm Diameter and 38 mm to 180 mm Height* |
| Washing Type | Linear Continuous Motion with Stationary Drive |
| Air Consumption | 12 to 15 CFM |
| Water Consumption | 450 to 600 Litres per hour for each washing zone, depending on bottle size |
| Washing Zones | Five zones, configurable according to the required washing sequence |
| Pumps and Water Tanks | 2 Nos. centrifugal pumps, each with 6000 Litre/hour capacity, and 50 Litre water tanks |
| Machine Speed | Maximum 120 Bottles per minute, depending on bottle size |
| Conveyor Height | 815–940 mm |
| Overall Dimensions | 2700 mm (L) x 1400 mm (W) x 1550 mm (H) |
| * Specifications can be customized as per customer requirements. | |
Utility Requirements
| Filtered Compressed Air | 30 CFM |
| Electrical Supply | 415 VAC, 3 Phase, 50 Hz and 220 VAC Single Phase Power Supply (50/60 Hz) |
| Power | 4 HP |
| Customer is also required to provide Water / D.M. Water and line connection up to the machine tank. | |
Special Features of BOTTLEWASH-120
- 50 washing jets across 5 internal washing zones
- 20 jets for external bottle washing (2 rows x 10)
- 25 channels with 10 pockets on each channel, providing 250 pockets
- All product-contact parts made from SS 316 material
- Machine construction made from SS 304 material
- Suitable for 30 ml to 200 ml bottle sizes*
- Five configurable washing zones for customized washing sequences
- Built-in 2 pumps and 2 water tanks
- Independent circuit for each washing zone to help prevent cross-contamination
- Automatic bottle in-feed and exit system
- Suitable for round and flat-shaped glass, PET, and plastic bottles
- Maximum washing speed of up to 120 bottles per minute, depending on bottle size
- Customized washing sequence according to bottle and process requirements
×
