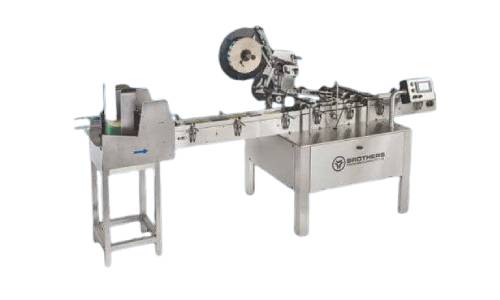

LABELSTIK-120C
The Automatic Sticker Labelling Machine Model LABELSTIK-120C, is one of the most user friendly. The Machine incorporates latest sophisticated Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. The machine is suitable for applying Top Side Labels on flat Cartons/Pouch, applying Single Security Label on Cartons in “L” shape. Machine also available with Side Label Application of Single Label in “L” Shape on Cartons or with Twin Label Dispenser to apply “L” shape label on Cartons. Machine can be used for Self Adhesive Paper Labels, Film Labels or Hologram. It is capable of Labelling up to 100 units per minute depending on Product Size, Shape, Product movement direction and Label size. Machine suitable for all type of Pouches and Cartons. Machine can be used for Off-Line or On Line application.
The Sticker Labelling Machine LABELSTIK-120C has its own unique single point synchronize speed control system. The Inbuilt Automated Label Length detection systems eliminates any need for manually feeding and storing of Label Length data in memory and retrieving the same every time for change of Label Size & re-starting the machine. The System thus saves valuable time, avoiding machine-down time, and helps achieve higher production. Machines having required all basic features as a standard fitment to match the current market needs and also saves cost and time. Machine also available with optional special features of applying Twin Label on products from Single Label Roll or application of Label on product at regular intervals.
Technical Specifications
Label Height | 8 mm to 70 mm Standard* |
Label Length | 12 mm Standard* |
Label Roll Dia. | 400 mm |
Core Dia. | 75/76 mm |
Gap Between two Labels | appx. 3 mm |
Product Size | Width Min. 70 to 100mm and Length 50 to 250mm |
Electrical | 220 VAC Single Phase Power Supply (50/60 Hz) |
Power | 1.5 Amp. |
Capacity | 0.75 Kw |
Speed | Up to 100 Labels per minute depending on Product and Label Size |
Direction of Product Movement | Left to Right from operator side for Glue Labelling and Right to Left from operator side for Sticker Labelling* |
Conveyor height | 830-875 mm* |
Overall dimension | 1830 mm(L) X 650 mm(W) X 1500-1700 mm (H) |
Machine Direction of Movement | Left to Right from operator side |
* Specification can be changed as per customers requirements |
