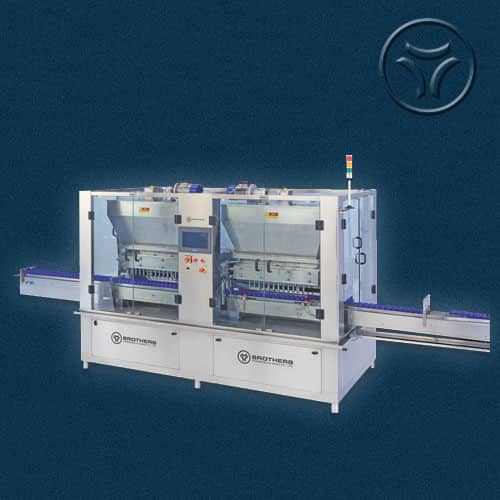

LIQFILL-120MB
The Automatic Rotary Monoblock
12x8 Head Volumetric Linear Bottle Filling and Capping
Machine, Model LIQFILL-120MB is suitable for
Round, Oval, Flat or Square Bottles with
maximum speed of 120 Bottles per minute. Machine with Rotary operation
of bottles resulting in
smoother movement of bottles at lower speed producing higher output. The
output of Bottle
Filling Machines depending on nature of Liquids, Bottle Diameter, Bottle
Height, Bottle Neck
Size and Fill Volume. Machine construction in fully Stainless Steel
finish including M.S. Frame
structure with SS304 cladding. Machine with Optional Turn Tables at
In-feed and Out-feed with
individual drives to match the speed of incoming and outgoing Bottles
for smoother operation.
All parts coming in contact with Liquids are made from SS 316
Materials.
Machine works on Volumetric Piston Filling principal which fills Liquid
into the bottle with High
Level of Fill Accuracy of liquid in each bottles. Machine suitable for
Filling Pharmaceutical
products, Oil, Mouth Wash etc.
Technical Specifications :
Bottle Diameter | 28mm to 70mm* |
Bottle Height | 50mm to 200mm* |
Cap Size | 18mm to 55mm ROPP or Plastic Screw Cap |
Fill Range | 15ml to 120ml or 30ml to 250ml* |
Accuracy | +/- 2% to 3% Depending on type of Liquid |
Electrical | 440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz) |
Power | 2.5 Hp |
Speed | Max. 120 Bottles per minute depending on Fill Volume and type of Liquid |
Syringe Fill Range | 15ml to 120ml,30ml to 250ml or 250ml to 500ml on Special Version |
Conveyor Height | 800-850 mm |
Overall Dimensions | 2400 mm (L) x 1400 mm (W) x 1550 mm(H) |
* Specification can be changed as per customers requirements |
Special Features :
- No Bottle - No Fill System, No Bottle - Machine Stop System
- Rotary Bottle Movement system for smoother operation
- All contact parts made of SS316 material with easy removal system for Auto-Claving/Sterilization/Cleaning
- Machine construction in SS 304 material
- Very High Fill Accuracy
- Automatic In-feed and Exit of Bottles
- Minimum Change Over time
- Filling and Capping operation in Single machine due to Monoblock design
- Built-in A.C. Variable Freq. Drive System
