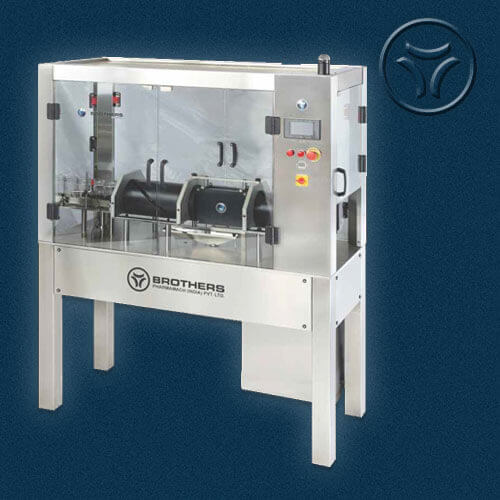

VIALWASH-60.Ext
The Automatic Linear External Vial Washing Machine Model VIALWASH-60. is suitable for Round Vials sizes EXT of appx. 5 ml to 100 ml pack size with maximum speed of 60 Vials per minute, Specially designed machine also available for 2 ml Vial Size.
Machine construction is in Stainless Steel finish including frame structure. All parts coming in contact with water are made from S.S.316 Material. Continues Motion of Vials on Wire Mesh Conveyor ensure the washing of each vials from top as well as side. Machine also offers various customised options for washing sequence as per customers requirements. Machine available with optional HOT Air Blowing system.
Technical Specifications :
| Suitable for | 5ml to 100ml Vials |
| Vial Diameter | 20mm to 44mm* |
| Air Wash | Machine with built in Air Wash System |
| Washing type | Linear Continues Motion with Stationery Drive |
| Air Consumption | 5 CFM |
| Water Consumption : 250 to 400 Litre per hour for each washing zone (depending on Vial size) | |
| Washing Zone | Washing Zone can be set as per customer requirement. |
| Water Tank & Pump | 1no. with 25 Ltr. Capacity with Centrifugal Pump |
| Speed | Max. 60 Vials per minute depending on Vial Size |
| Conveyor Height | 815-940 mm |
| Overall Dimensions | 1850 mm (L) x 650 mm (W) x 900mm (H) |
* Specification can be changed as per customers requirements
Utility Requirement :
| Filtered Compressed Air | 4 to 5 Bar Air Pressure |
| Electrical | 415 VAC 3 Phase 50Hz and 220 VAC Single Phase Power Supply (50/60 Hz) |
| Power | 3 Hp |
| Customer also required to provide Water / D.M. Water etc. and also | |
| Line connection up to Machine tank |
Special/Optional Features :
- 100 Jets for 5 washing internal zone
- All contact parts made of SS316 material
- Machine construction in SS304 material
- Suitable for 5ml to 100ml Vial Size*
- Washing sequence can be made as per customers requirements.
- Built-in 2 Pumps and 2 Tanks
- Each washing zone with independent circuit to avoid contamination
- Automatic In-feed and Exit of Vials
×
